Classic Fuel Tank Sending Units
Classic Instruments manufactures several tank senders to conform to most OEM (original equipment manufacturers) electrical resistance specifications.
Classic also assembles many of its fuel gauges to read correctly when connected to the original or stock tank sender.
A chart is provided below to assist you in determining what tank sender you probably have in your vehicle.
Refer to the chart when choosing the proper resistance range of fuel gauge to connect to your specific tank sender.
Selection Chart for Fuel Senders
|
If Gauge is:
|
Ohms Empty | Ohms Full | Use Classic Sender: |
|
GMC 1964 or earlier
|
0 | 30 | Sender SN36 |
|
GMC 1966 and later
|

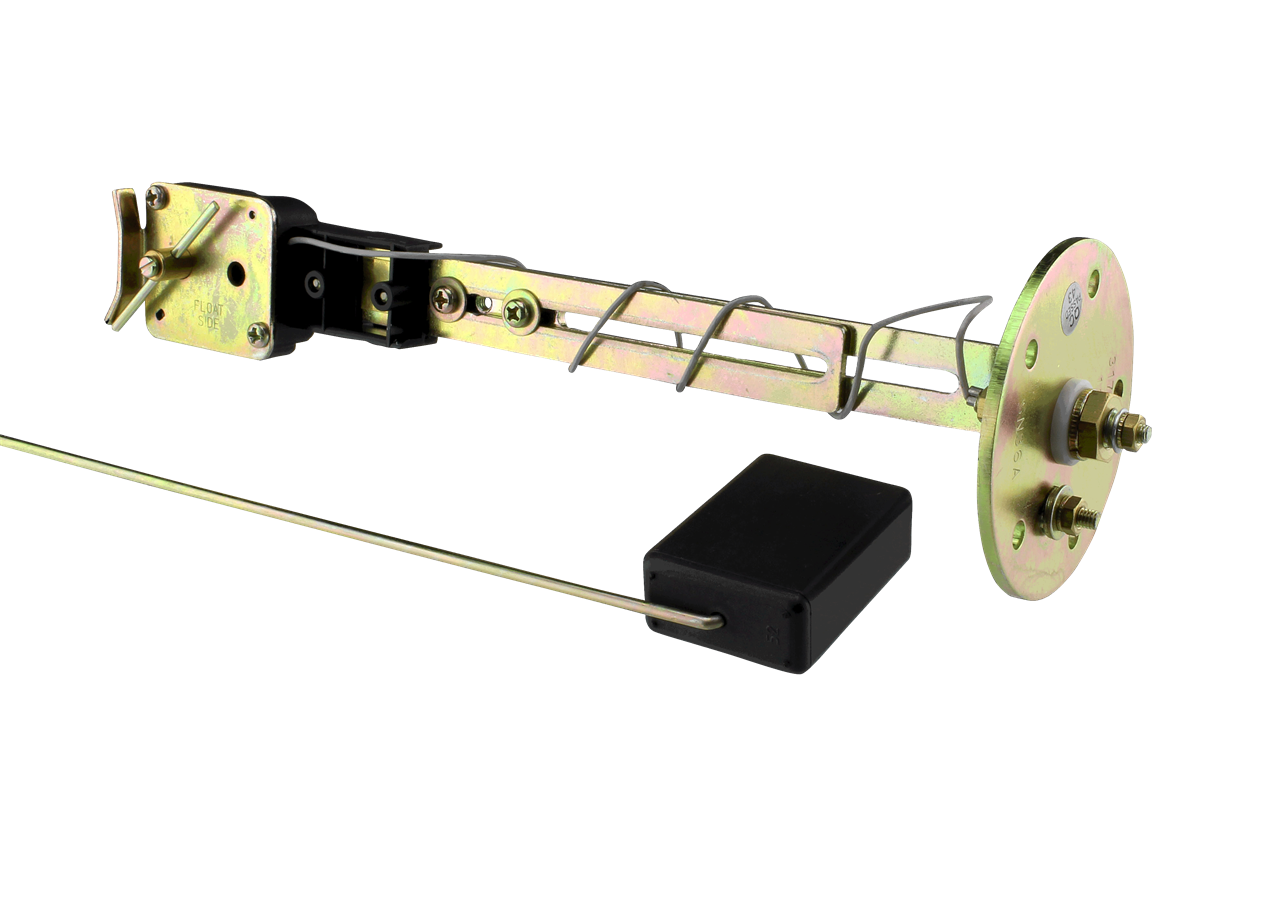

0 | 90 | Sender SN38 |
|
Ford - 1987-later
(Unleaded Fuel only) |
16 | 158 | Not Available at this time |
|
Ford (pre-1987); AMC
|
73 | 10 | Sender SN39 |
|
Toyota-Nissan 1985 and later
|
90 | 0 | Sender SN38 - mount movement Upside-Down |
|
Stewart-Warner
|

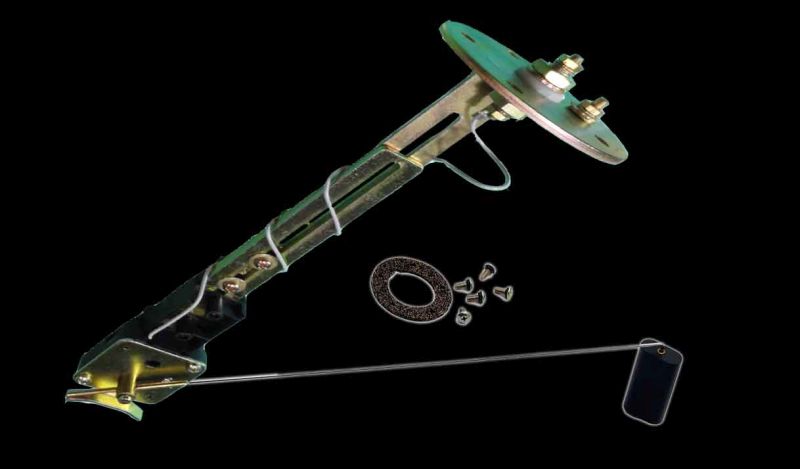

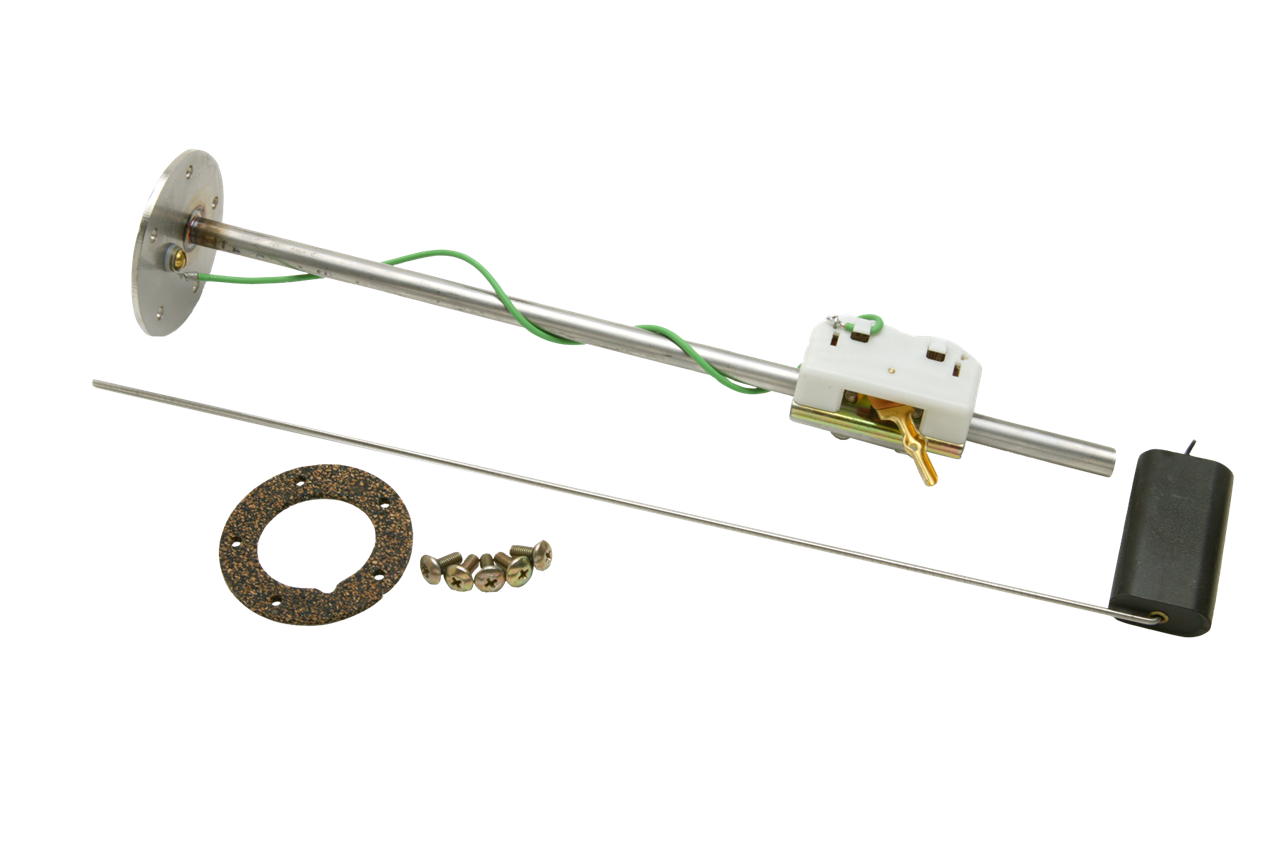

240 | 33 | Sender SN33 or SN35 |
|
Auto-Meter
|
240 | 33 | Sender SN33 or SN35 |
